Power: 10W / 18W / 28W / 38W
Type: Track light
Voltage: 220-240V
Dimming Option: Non-dimmable / TRIAC / 1-10V / DALI
Optics: Reflector 15° / 24° / 38° / 60°
Installation: Track Mounted
Track System: 2 Wires 1 Circuit / 3 Wires 1 Circuit / 4 Wires 3 Circuits / DALI 4 Wires 1 Circuit / DALI 6 Wires 3 Circuits
Rotates: 350° horizontal, 90° vertical
Material: Die-casting aluminum + PC
Color: Matte white / Matte black
Lifespan: 50000 hrs
Certification: CE, 5 years warranty
| NO. | Model No. | Power | Size(mm) | LED Chip | Luminous Flux | CCT | CRI | Beam Angle | Voltage |

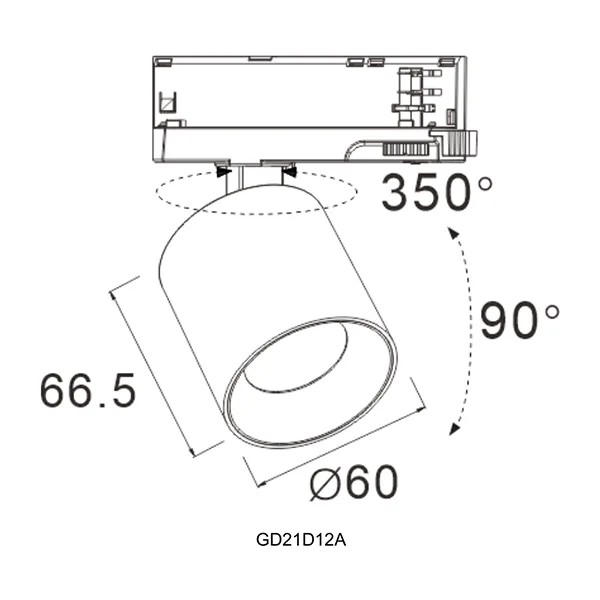

| 1 | GD21D12A | 10W | φ60mm*66.5mm | COB | 1050lm | 3000K 4000K 5000K | 80/90 | 15°/24°/38°/60° | 180-265V 50/60Hz |

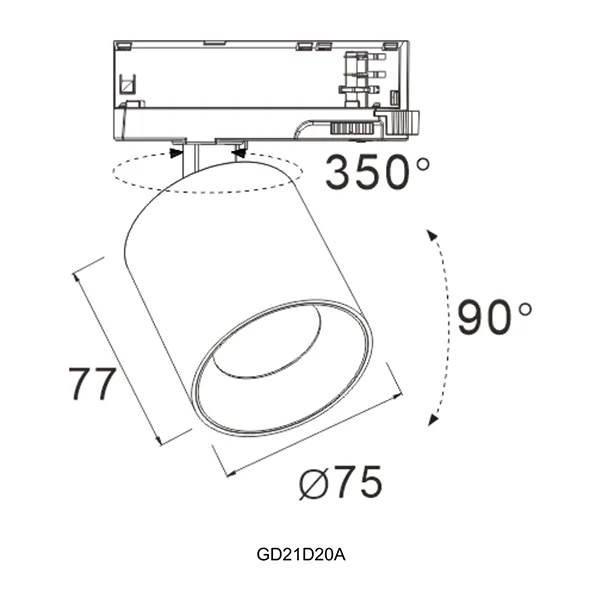

| 2 | GD21D20A | 18W | φ75*77mm | COB | 1890lm | 3000K 4000K 5000K | 80/90 | 15°/24°/38°/60° | 180-265V 50/60Hz |

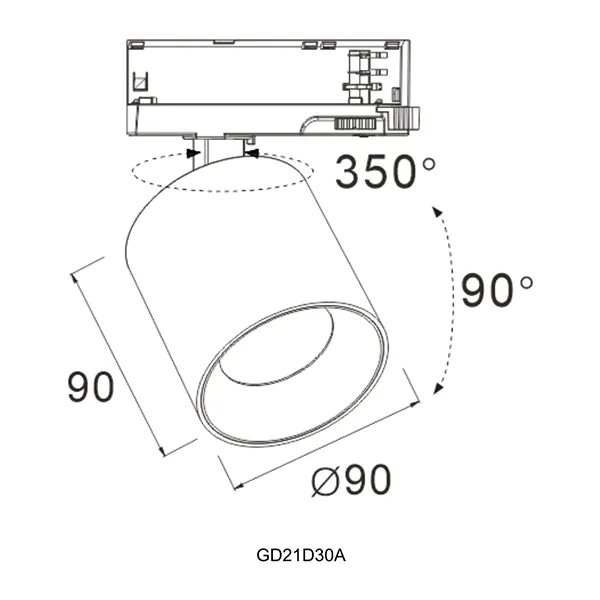

| 3 | GD21D30A | 28W | φ90mm*90mm | COB | 2940lm | 3000K 4000K 5000K | 80/90 | 15°/24°/38°/60° | 180-265V 50/60Hz |

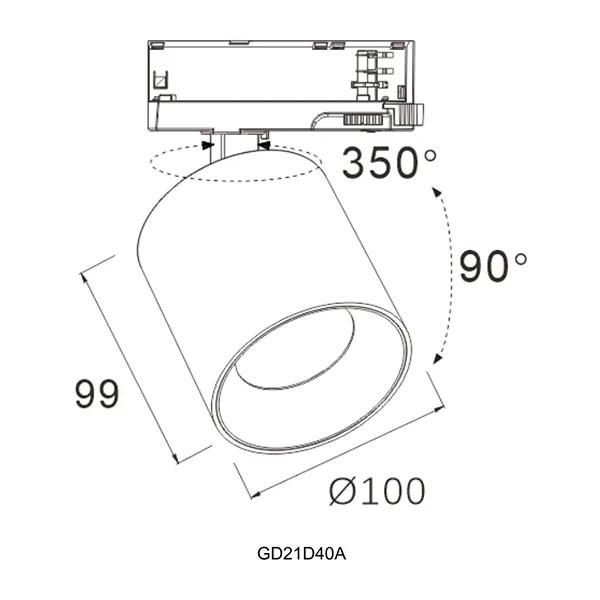

| 3 | GD21D40A | 38W | φ100mm*99mm | COB | 3990lm | 3000K 4000K 5000K | 80/90 | 15°/24°/38°/60° | 180-265V 50/60Hz |

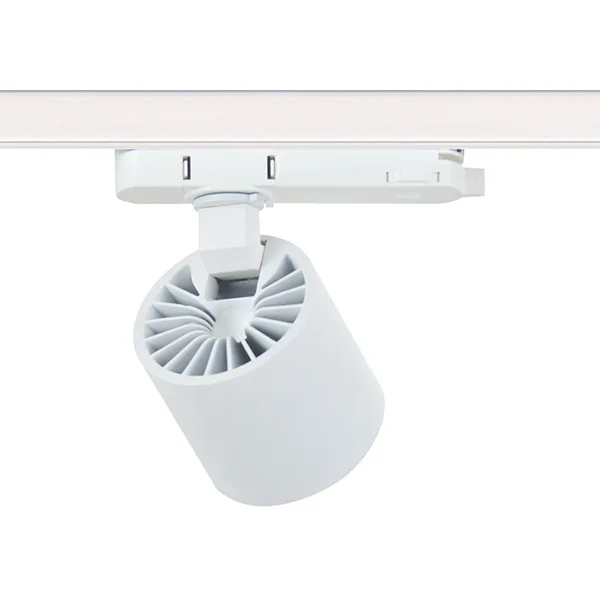

The track mounted light uses a unique track design that allows for flexible adjustment of the position and angle of the lamp to suit different lighting needs. Whether it is focused lighting or providing a wide range of ambient lighting, you can adjust the direction of the lamp as you wish according to the space layout and functional requirements to easily create the ideal lighting effect.
It is made of high-quality materials with excellent corrosion resistance and durability, suitable for long-term use. Its stable structure can effectively resist external impact and wear, ensuring the long-term stable operation of the lamp. Moreover, the light adopts advanced heat dissipation technology, which can effectively reduce the temperature, avoid overheating affecting the performance of the lamp, and greatly extend the service life.
