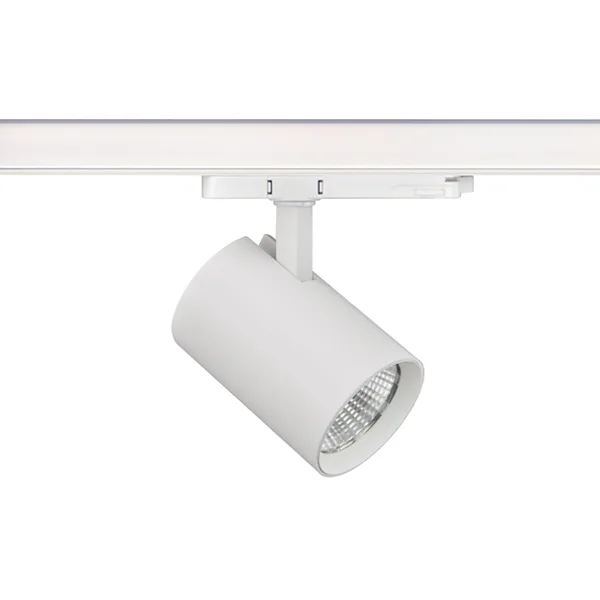

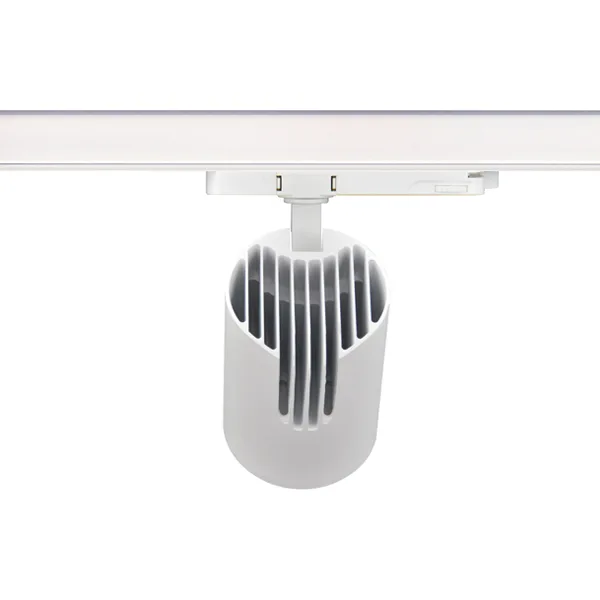

Suspended Track Lighting

Power: 20W / 30W / 40W / 50W

Type: Track light

Voltage: 220-240V

Dimming Option: Non-dimmable / TRIAC / 1-10V / DALI

Optics: Reflector 15° / 24° / 36°

Installation: Track Mounted

Track System: 2 Wires 1 Circuit / 3 Wires 1 Circuit / 4 Wires 3 Circuits / DALI 4 Wires 1 Circuit / DALI 6 Wires 3 Circuits

Rotates: 350° horizontal, 90° vertical

Material: Die-casting aluminum + PC

Color: Matte white / Matte black

Lifespan: 50000 hrs

Certification: CE, 5 years warranty

Product Specification

NO.	Model No.	Power	Size(mm)	LED Chip	Luminous Flux	CCT	CRI	Beam Angle	Voltage

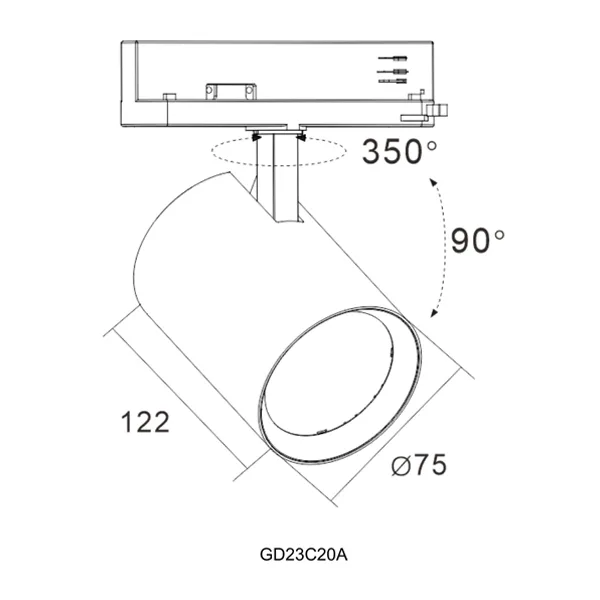

1	GD23C20A	20W/ 30W	φ75mm*122mm	COB	2770lm/ 3690lm	3000K 4000K 5000K	80/90	15°/ 24°/ 36°	180-265V 50/60Hz

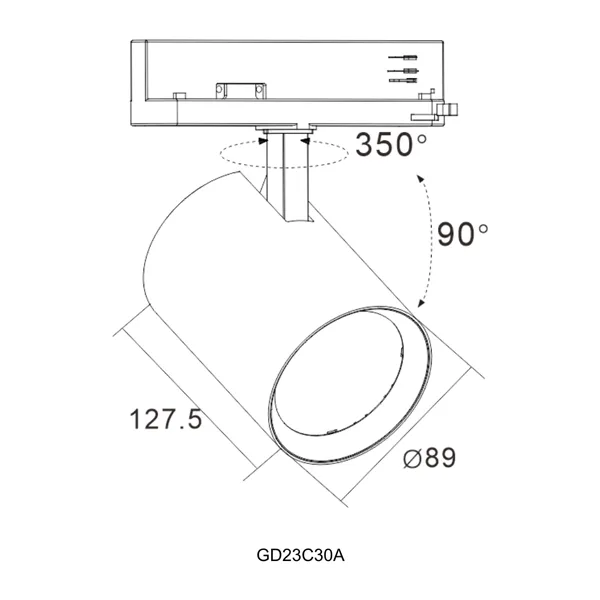

2	GD23C30A	30W/ 40W	φ89*127.5mm	COB	3690lm/ 4620lm	3000K 4000K 5000K	80/90	15°/ 24°/ 36°	180-265V 50/60Hz

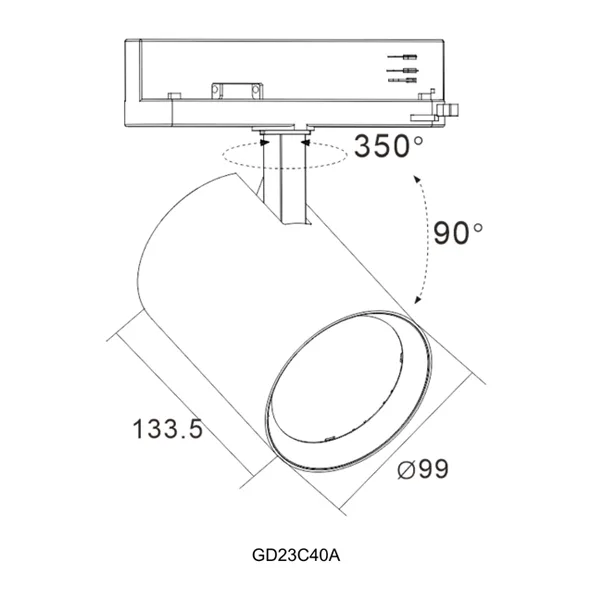

3	GD23C40A	40W/ 50W	φ99mm*133.5mm	COB	4620lm/ 6925lm	3000K 4000K 5000K	80/90	15°/ 24°/ 36°	180-265V 50/60Hz

Description

This track lighting is very flexible. The light head can adjust the angle freely, allowing you to easily focus the light on the area you need to illuminate. Whether it is to create a warm home atmosphere or highlight the unique charm of the product, the suspended track light can meet your lighting needs.

Using advanced LED light source technology, the suspended track lighting has the characteristics of high brightness and low energy consumption. Not only can it significantly reduce electricity bills, but also reduce carbon emissions. In addition, the lamp body is made of high-quality materials with good durability and heat dissipation performance, which not only ensures long-term stable use, but also effectively prevents overheating and improves safety.
