Power: 6W / 12W / 18W

Type: Magnetic Track light

Input Voltage: 180-256V AC

Output Voltage: 48V DC

Dimming Option: No Dim / Bluetooth / Zigbee / Tuya Dim

Optics: Diffuser 120°

CCT: 3000K / 4000K / 5000K

Material: Die-casting aluminum + PC

Color: Matte white / Matte black

Lifespan: 50000 hrs

Certification: CE, 5 years warranty

Contact Us

Product Specification

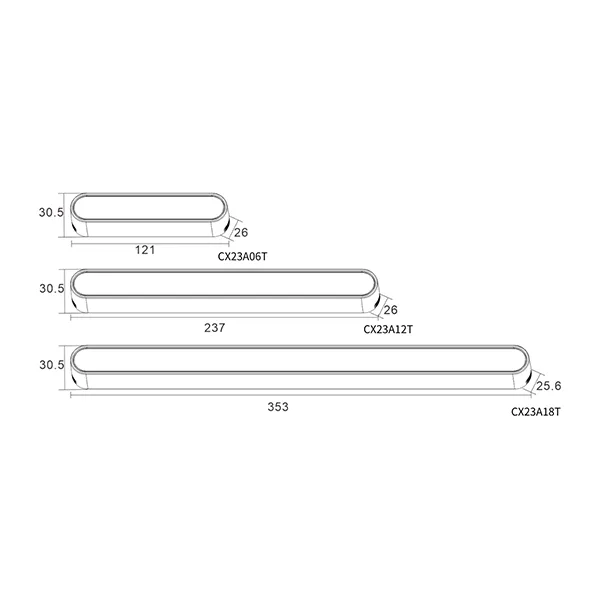

Model No. Color Watt Size LED Chip Luminous Flux CCT
CX23A06T Black

White

6W 121x26x30.5mm SMD 300lm 3000K

4000K

5000K

CX23A12T Black

White

12W 237x26x30.5mm SMD 600lm 3000K

4000K

5000K

CX23A18T Black

White

18W 353x26x30.5mm SMD 900lm 3000K

4000K

5000K

Description

This track lighting system adopts a magnetic design, and the lamps can be adsorbed, moved, or replaced at will, making it easy to achieve a personalized lighting layout. Whether it is accent lighting, atmosphere lighting, or overall lighting, users can freely adjust the position of the lamps according to the needs of different scenes to create an ideal light environment.

Using high-quality LED light sources, this magnetic track light provides uniform and soft lighting effects. At the same time, the system has a low energy consumption design, which can maintain stable light effects after long-term use, which is environmentally friendly and energy-saving, and prolongs the service life. The magnetic track lighting system has a simple and modern design style and is suitable for homes, commercial places, and office spaces.

Download Our Catalog

Specification Sheet - CX23A06T
Specification Sheet - CX23A12T
Specification Sheet - CX23A18T
