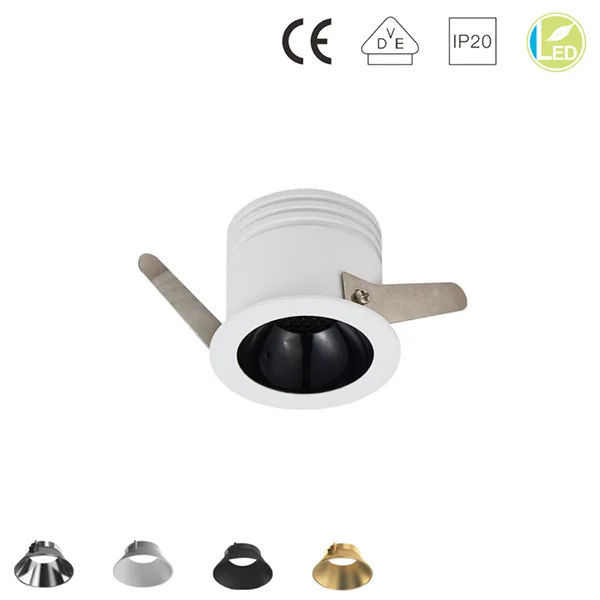

Indoor Recessed Downlight

Power: 2-3W / 6W / 9W

Type: Down Light

Voltage: 220-240V

Dimming Option: Non-dimmable / TRIAC / 1-10V / DALI

Optics: Lens

Installation: Recessed Mounted

Material: Die-casting aluminum + PC

Color: Matte white / Matte black

Lifespan: 50000 hrs

Certification: CE, 5 years warranty

Product Specification

Model No.	Color	Watt	Size	LED Chip	Luminous Flux	Beam Angle	CCT

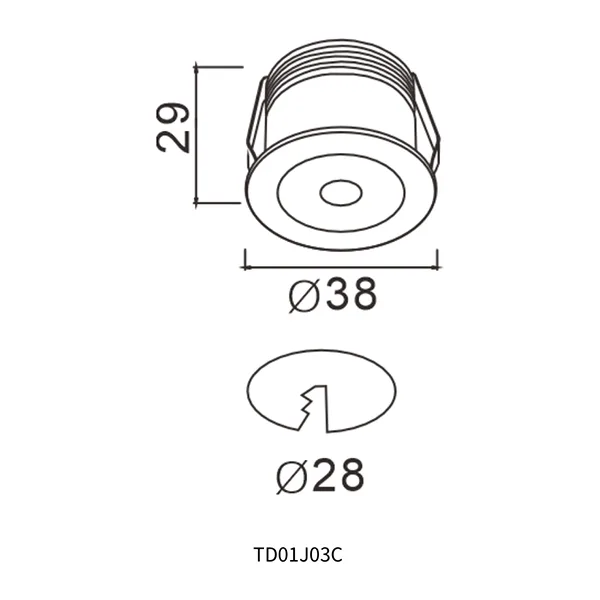

TD01J03C	Black White	2-3W	D38x29mm	SMD	180-270 lm	Pinhole imaging	3000K 4000K 5000K

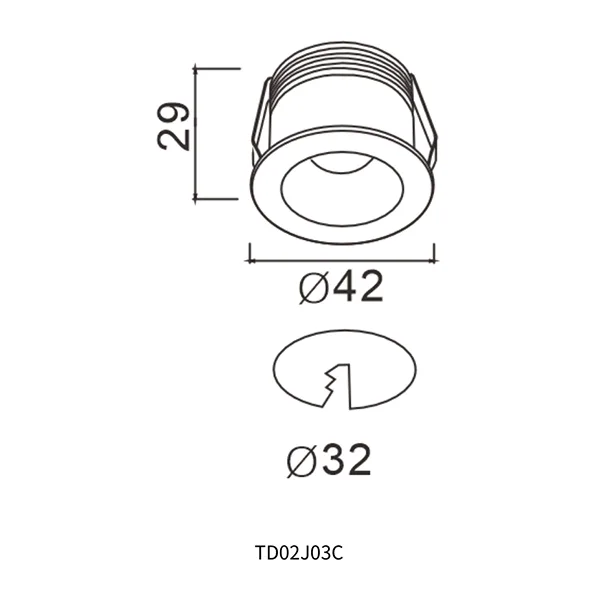

TD02J03C	Black White	2-3W	D42x29mm	SMD	180-270 lm	10°/ 12°/ 15°/ 25°/ 50°/ 15×35°	3000K 4000K 5000K

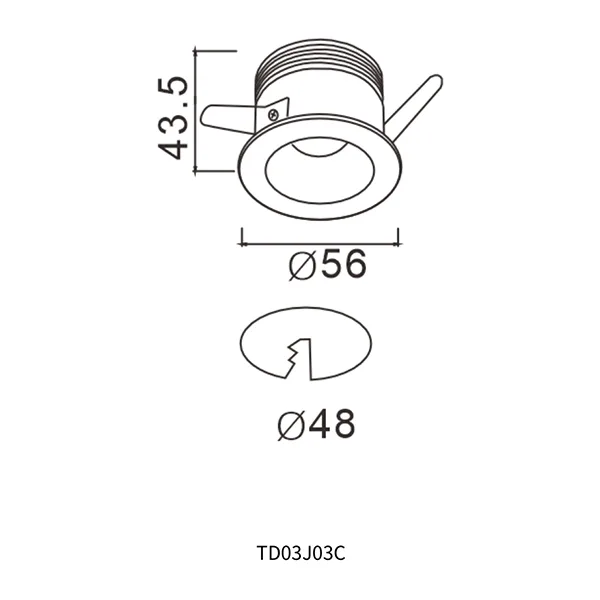

TD03J03C	Black White	2-3W	D56x43.5mm	SMD	180-270 lm	10°/ 12°/ 15°/ 25°/ 50°/ 15×35°	3000K 4000K 5000K
TD04J06C	Black White	6W	D68x55mm	COB	540lm	20°/ 40°	3000K 4000K 5000K

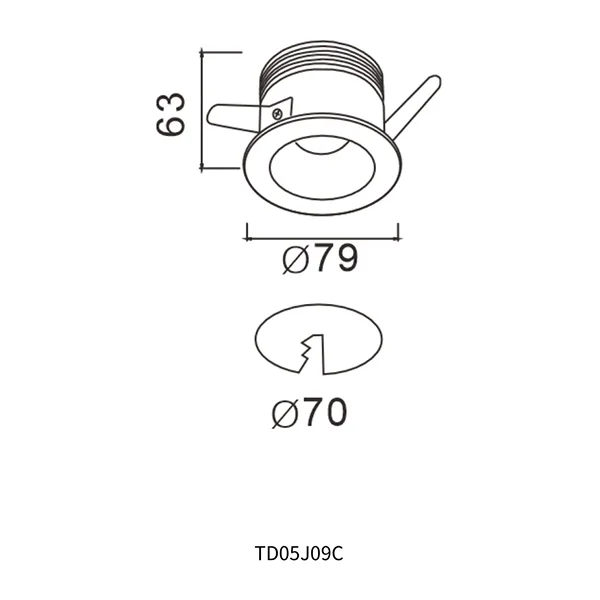

TD05J09C	Black White	9W	D79x63mm	COB	810lm	15°/ 24°/ 36°	3000K 4000K 5000K

Description

This indoor recessed downlight adopts a simple and modern embedded design with a sophisticated appearance, which can perfectly blend into various interior styles. It is equipped with an adjustable beam angle function, so users can freely adjust the irradiation range as needed, and flexibly adapt to different lighting needs.

Using high-efficiency LED light sources, this recessed downlight can effectively save energy and reduce the cost of use while ensuring strong brightness. Its low power consumption design not only reduces energy consumption, but also extends the service life of the lamp. At the same time, the high-quality material makes it more durable, ensuring that the lamp always maintains the best performance and light effect.
