1 / 3 Circuit Track Lighting

Power: 10W / 15W / 24W / 34W

Type: Track light

Voltage: 220-240V

Dimming Option: Non-dimmable / TRIAC / 1-10V / DALI

Optics: Lens 15° / 24° / 38°

Installation: Track Mounted

Track System: 2 Wires 1 Circuit / 3 Wires 1 Circuit / 4 Wires 3 Circuits / DALI 4 Wires 1 Circuit / DALI 6 Wires 3 Circuits

Rotates: 350° horizontal, 90° vertical

Material: Die-casting aluminum + PC

Color: Matte white / Matte black

Lifespan: 50000 hrs

Certification: CE, 5 years warranty

Product Specification

NO.	Model No.	Power	Size(mm)	LED Chip	Luminous Flux	CCT	CRI	Beam Angle	Voltage

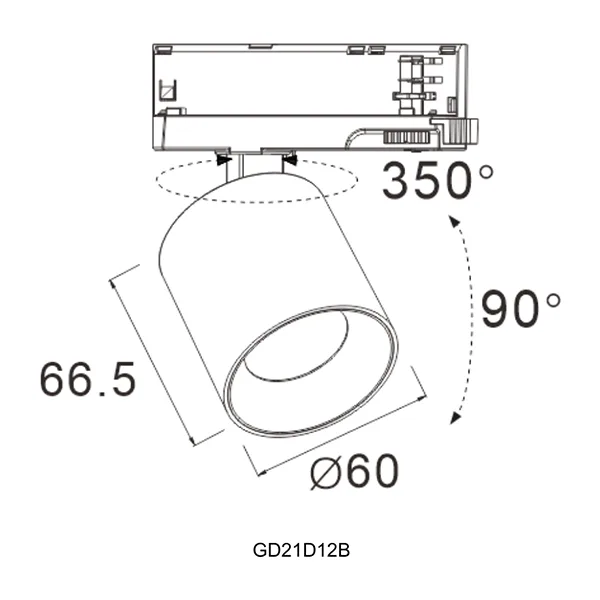

1	GD21D12B	10W	φ60mm*66.5mm	COB	1050lm	3000K 4000K 5000K	80/90	15°/24°/38°	180-265V 50/60Hz

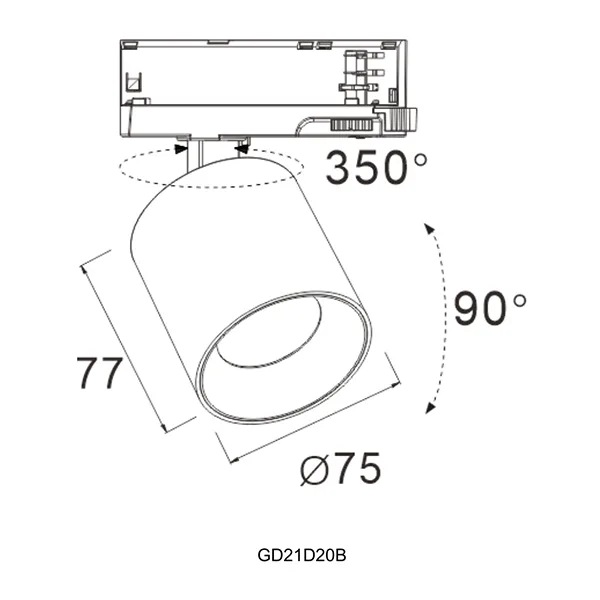

2	GD21D20B	15W	φ75*77mm	COB	1575lm	3000K 4000K 5000K	80/90	15°/24°/38°	180-265V 50/60Hz

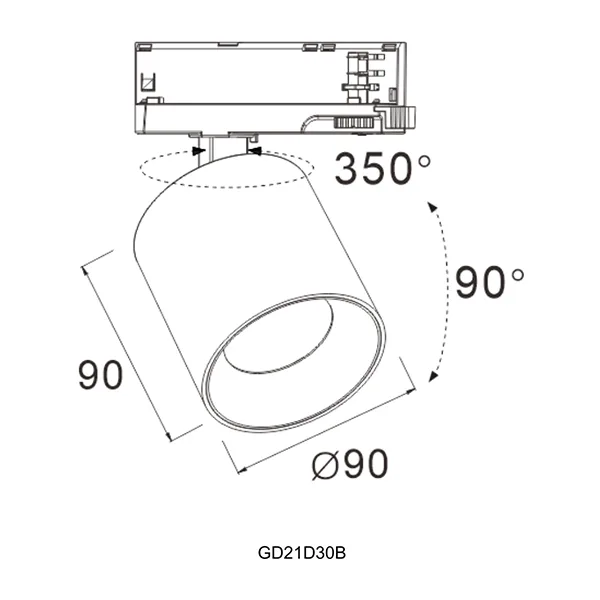

3	GD21D30B	24W	φ90mm*90mm	COB	2520lm	3000K 4000K 5000K	80/90	15°/24°/38°	180-265V 50/60Hz

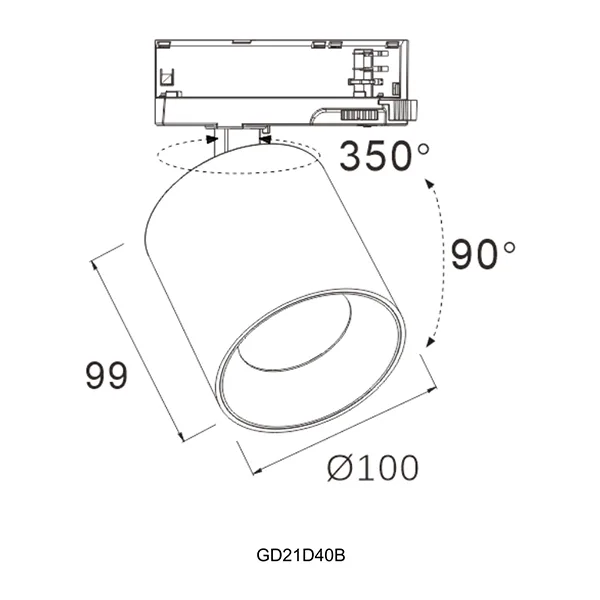

3	GD21D40B	34W	φ100mm*99mm	COB	3570lm	3000K 4000K 5000K	80/90	15°/24°/38°	180-265V 50/60Hz

Description

The biggest feature of this track lighting is its flexible adjustment function. The lamp head can adjust the direction and angle as needed to ensure that the light is accurately irradiated to the designated area to meet the needs of different scenes.

This track lighting adopts advanced LED technology, which not only provides bright and uniform lighting, but also significantly reduces energy consumption. LED light sources have a longer service life and lower maintenance costs. Users can adjust the brightness of the light according to lighting needs, further improving energy efficiency and reducing unnecessary electricity waste.

In addition, the design of this track light is simple and modern, which can be integrated into the decorative style of various home and commercial spaces. Whether it is a traditional suspended ceiling or a modern open ceiling, this light can add a sense of fashion and unique charm to the space.
